EasyLog
A multi-log analyzer with a dedicated dashboard for every log type.
EasyLog ingests logs over syslog, parses each source by type, stores the parsed events in an embedded DuckDB column store, and serves a live dashboard per log type — all from a single, self-contained binary. Instead of a wall of raw text, you get clear metrics, charts, and drill-down tailored to each source.
Architecture
graph TD
A["Log sources (Apache, Nginx, Caddy, HAProxy, Traefik …)"] -->|"rsyslog → syslog UDP/TCP :514"| B["EasyLog ingest engine (Rust / Axum)"]
B -->|"route by source IP"| C{"Log type"}
C -->|apache / nginx| D["Combined-format parser"]
C -->|caddy / traefik| E["JSON access-log parsers"]
C -->|haproxy| F["httplog parser"]
D --> G[("DuckDB (columnar store)")]
E --> G
F --> G
G -->|"live SQL aggregations"| H["Per-type dashboards · Web UI :3000"]Incoming syslog messages are routed to a parser by the sending host's IP, which you map to a log type in the web UI. Parsed events are stored as rows — the source of truth — and every dashboard is a live SQL query over them, so you can always drill down to the underlying requests.
Features
- Syslog ingestion over both UDP and TCP (RFC 3164 & RFC 5424).
- Pluggable log types — each type owns its parser, storage schema, and dashboard.
- DuckDB storage — parsed events stored as rows; dashboards run live analytical SQL, so new views never need a re-ingest.
- A dashboard per log type — KPI cards, a requests timeline, status-code breakdowns, and top-N tables, with click-to-filter drill-down and a time-range selector (hour / 24h / week / month / year).
- IP geolocation, fully offline — every client IP is resolved to a country at ingest, driving a Countries KPI, a Top-countries panel, and a shaded world map you can click to filter. The country database is bundled in the binary; no lookups leave the machine.
- Overview home page — cross-type KPIs (total logs, logs/min, countries), a world map across all log types, and pie charts by source, type, and country.
- Authentication — admin account created on first run; the web UI is login-protected. Syslog ingestion stays open.
- Single self-contained binary — templates and assets are compiled in; nothing to install alongside it. Light/dark theme, fully offline (no CDN).
- First-class packaging —
.deband.rpmfor x86_64 and arm64, with a systemd unit.
Supported log types
Dashboards are grouped into Web and Firewalls; firewall logs get a layout of their own, built around what got blocked and where it came from rather than response times.
| Log source | Format | Dashboard highlights |
|---|---|---|
| Apache HTTPD | Common / Combined | Requests, status codes, top URLs & client IPs |
| Nginx | Combined access log | Requests, status codes, top URLs & client IPs |
| Caddy | JSON access log | The above plus avg & p95 request duration |
| HAProxy | option httplog |
The above plus top backends/servers and avg & p95 duration |
| Traefik | JSON access log | The above plus top routers/services and avg & p95 request duration |
| Cisco ASA | ASA syslog message IDs | Deny rate, allow/deny split, top sources/destinations/ports, top access-lists |
| Palo Alto | PAN-OS TRAFFIC log | The above plus top applications (App-ID) and security rules |
Adding more types is by design
A new log type is a self-contained module (parser + storage + dashboard), and it brings its own navigation entry with it. Apache and Nginx share the combined-format engine; Caddy, HAProxy and Traefik share the renderer for logs that carry a request duration, each declaring its own routing dimensions — routers/services for Traefik, backends/servers for HAProxy.
Installation
EasyLog ships as a single binary and installs a service that starts on boot. Install it from the EasySYS package repository so upgrades come through your package manager. Packages are published for x86_64 and arm64; your package manager picks the right one.
# Add the EasyLog repository (signed)
curl -fsSL https://repo.easysys.io/easylog/stable/debian/key.gpg \
| sudo gpg --dearmor -o /usr/share/keyrings/easysys.gpg
echo "deb [signed-by=/usr/share/keyrings/easysys.gpg] https://repo.easysys.io/easylog/stable/debian ./" \
| sudo tee /etc/apt/sources.list.d/easylog.list
sudo apt update
sudo apt install easylog
sudo systemctl enable --now easylog
For air-gapped hosts, grab the .deb or .rpm for your architecture from the
releases page:
sudo dpkg -i easylog_*_amd64.deb # or _arm64.deb
sudo rpm -i easylog-*.x86_64.rpm # or .aarch64.rpm
sudo systemctl enable --now easylog
Upgrades then mean downloading the next package by hand — the repository is the easier path where the host has network access.
The package installs the binary to /usr/bin/easylog, a default config to /etc/easylog/easylog.toml, and a systemd unit; the database lives in /var/lib/easylog. The service runs as root (standard for a syslog collector binding port 514).
Then open http://<host>:3000/ — on first run you'll be prompted to create the admin account, after which the UI requires login.
Configuration
EasyLog reads /etc/easylog/easylog.toml (override the path with the EASYLOG_CONFIG environment variable):
syslog_bind = "0.0.0.0" # address the UDP + TCP listeners bind to
syslog_port = 514 # standard syslog; use 5514 to run without privileges
web_port = 3000 # web UI / dashboards
db_path = "/var/lib/easylog/easylog.duckdb"
geo_db_path = "" # external MaxMind .mmdb; empty = bundled DB-IP Lite
retention_days = 0 # delete events older than N days; 0 = keep everything
auto_compact = true # rewrite the database at startup to reclaim disk
log_dir = "/var/log/easylog" # EasyLog's own logs; "" = stdout only
log_level = "info" # RUST_LOG overrides this
log_keep_days = 14 # daily rotation, files kept
EasyLog's own logs
Besides stdout (so journalctl -u easylog works as before), EasyLog writes two files under log_dir, created by the systemd unit:
easylog.log— operations: startup and configuration, which geolocation database is in use, retention prunes and compactions, and a per-minute ingest summary counting messages received, stored, unparsed, from an unknown source, and dropped because the write queue was full. That summary is the quickest way to tell whether a device is really sending, and whether its lines are being understood.audit.log— who did what: sign-ins and failed attempts, sign-outs, first-run administrator creation, and sources added or removed, each with the account and the client address.
Both roll daily and keep log_keep_days files (default 14), so there's nothing to configure in logrotate. If the directory can't be written — a source build running unprivileged, say — EasyLog logs a warning and continues on stdout instead of failing to start.
Keeping the database bounded
EasyLog keeps every event by default, which is fine until a busy source fills the
disk. Set retention_days and anything older is deleted — at startup and
hourly after that, across all log types. Events are aged by their own timestamp,
falling back to when EasyLog received them, so a line whose timestamp couldn't be
parsed is pruned too rather than living forever.
Deleting rows bounds the database but doesn't hand disk back: DuckDB reuses freed
space internally and never shrinks the file, so it stays at its high-water mark.
auto_compact (on by default) closes that gap by rewriting the database into
a fresh file at startup whenever a large share of it is dead space. It runs before
ingestion begins and keeps the original until the new file is safely in place, so
an interrupted compaction leaves your data untouched.
Where to see it
The Storage card on the overview shows the database size on disk and the active retention window. To reclaim disk right after shortening the window, restart the service — that's when compaction runs.
Note
Log sources are not configured here — they're managed in the web UI (next section), so you never have to edit and reload a file to add a host.
Sending logs to EasyLog
There are two steps: tell EasyLog which host sends which log type, then forward the logs.
1. Register the source
In the web UI, open Sources (/sources) and add the sending host's IP address with its log type (apache, nginx, or traefik). EasyLog routes incoming syslog by source IP — traffic from unregistered hosts is dropped.
2. Forward the logs
Point the host's log file at EasyLog's syslog port with rsyslog's imfile module. Polling mode is recommended for reliability inside containers.
/etc/rsyslog.d/60-easylog.conf on the web server:
module(load="imfile" mode="polling" pollingInterval="2")
input(type="imfile"
File="/var/log/apache2/access.log" # nginx: /var/log/nginx/access.log
Tag="apache"
ruleset="easylog_forward")
ruleset(name="easylog_forward") {
action(type="omfwd" target="EASYLOG_IP" port="514"
protocol="udp" template="RSYSLOG_ForwardFormat")
}
Enable JSON access logs in traefik.yml:
…then forward /var/log/traefik/access.log with the same imfile config as above, using Tag="traefik".
Enable the JSON access log for a site in your Caddyfile:
…then forward /var/log/caddy/access.log with the same imfile config as above, using Tag="caddy". Caddy's own lifecycle messages in that stream are ignored by the parser.
On the ASA, send syslog straight to EasyLog:
EasyLog reads the connection and access-decision messages (106023, 106100, 106001, 302013–302016) and ignores the rest of the ASA's chatter.
In Device → Server Profiles → Syslog, add a profile pointing at EASYLOG_IP:514 (UDP), then attach it to a Log Forwarding profile for Traffic logs and reference that profile from your security rules. EasyLog parses TRAFFIC records; THREAT, SYSTEM and CONFIG logs are ignored.
Apply and restart:
Log format & reverse proxies
EasyLog parses both Common and Combined access-log formats — Nginx's default combined and Apache's combined/common all work out of the box. If a host sits behind a reverse proxy, configure it to log the real client IP (e.g. mod_remoteip / X-Forwarded-For) so the dashboards show visitors rather than the proxy.

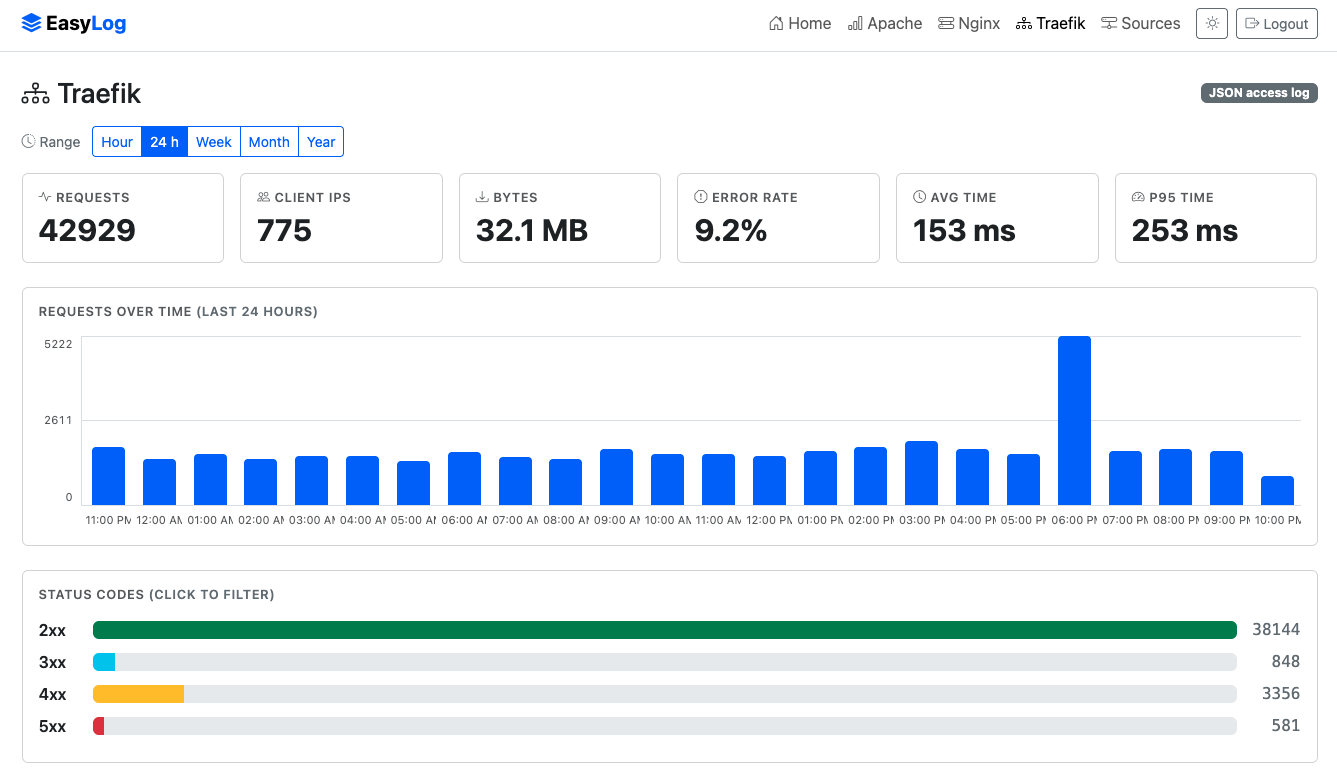

Dashboards
Each log type has its own dashboard, and the home page rolls everything up:
- KPI cards — requests, unique client IPs, bytes served, error rate (and avg/p95 duration for Traefik).
- Requests over time — a zero-filled timeline that spans the whole selected range, shown in your browser's local timezone.
- Status codes — 2xx / 3xx / 4xx / 5xx breakdown; click a class to filter.
- Top URLs & client IPs (and routers / services for Traefik) — click any row to filter the whole dashboard. Filters stack and are shareable by URL.
- Requests by country — a Top countries panel and a world map shaded by request volume; hover a country for its exact count, click it to filter.
Use the time-range buttons (Hour · 24h · Week · Month · Year) to bound everything, and click chart elements to drill in — the URL captures the active filters, so views are bookmarkable.
From charts to the actual lines
Every dashboard has a Raw button. It replaces the charts with the log lines behind them — newest first — and the Dashboard button switches back. It's a mode of the dashboard rather than a separate page, so the time range, every drill-down filter and the search term still apply: narrow to what you're investigating, hit Raw, and you're looking at exactly those events as the device sent them. The URL carries view=raw, so that stays shareable too.
Lines load 200 at a time with Load more, and Download saves every line matching the current filters as a .log file — handy for handing evidence to someone or grepping offline. Large exports are read in batches so they never stall ingestion, and stop at 500,000 lines (the file says so if it gets there).
Searching
Every dashboard has a search box beside the range selector. It matches free text across the fields that type records — URL, client IP, user agent and host on the web dashboards (plus routers/services or backends/servers), and source, destination, port, rule, application, zone and protocol on the firewalls.
Matching is case-insensitive substring, so 203.0.113 finds a whole subnet, /admin finds every path containing it, and 443 finds traffic to that port. Search behaves like any other filter: it narrows the KPIs, the timeline, every panel and the world map together, stacks with whatever drill-down is already active, appears as a removable chip, and is part of the URL — so a search is as shareable as any other view.
Dashboards are grouped by category in the navigation: the top row picks a category — Web today, with Firewalls and 3rd parties appearing as those log types land — and the row beneath it lists that category's dashboards (Apache, Nginx, Traefik). Each dashboard lives under its category, e.g. /web/apache; the older flat paths such as /apache redirect there, so existing bookmarks keep working.

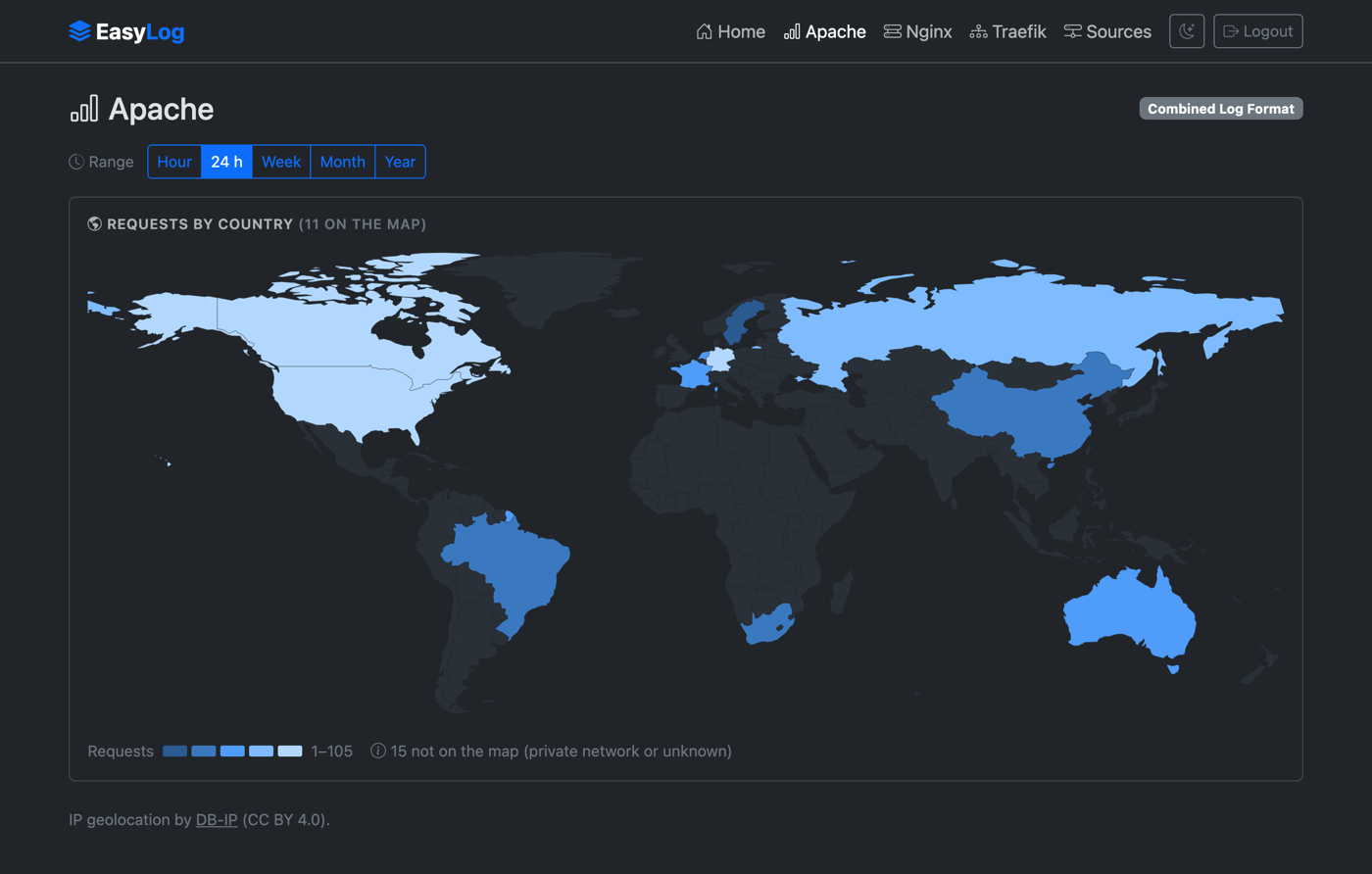

Where your traffic comes from
Each client IP is resolved to a country as the log line is ingested, so every dashboard — and the home overview — can show traffic geographically.
The shading uses a logarithmic scale, so a single dominant country doesn't flatten everything else into one shade. Clients that can't be placed on the map — private-network addresses (10.0.0.0/8, 192.168.0.0/16, …) and unresolved IPs — are never silently dropped: they're counted under the map and listed in the Top-countries panel as Private network and Unknown.
The map composes with everything else on the page: pick a range, click a status class, then click a country, and the KPIs, timeline, and tables all follow. Country filters appear as removable chips like any other filter.
Lookups are offline, and swappable
EasyLog bundles the DB-IP Lite country database in the binary — nothing to install, and no IP ever leaves your machine. To use a fresher or more detailed database, point geo_db_path at any MaxMind-format .mmdb (e.g. MaxMind GeoLite2) and restart. Countries are resolved at ingest time, so a database change applies to newly received logs, not to rows already stored.
Why EasyLog
- Memory-safe core — written in Rust on the Axum framework for speed and safety.
- No heavy database — DuckDB is embedded; there's no separate server to run, yet it's built for fast aggregation over millions of rows.
- Operationally simple — one binary, one config file, systemd-managed, packaged for the Debian and RHEL families on both x86_64 and arm64.
Bundled data
- IP geolocation by DB-IP — the DB-IP Lite country database, licensed CC BY 4.0.
- Country boundaries from Natural Earth (public domain).
